HAYDON MARKETING CCTV Boxed Power Supply Multi Way Flexible Up To 9 Way 12VDC Max Output 5 Amp

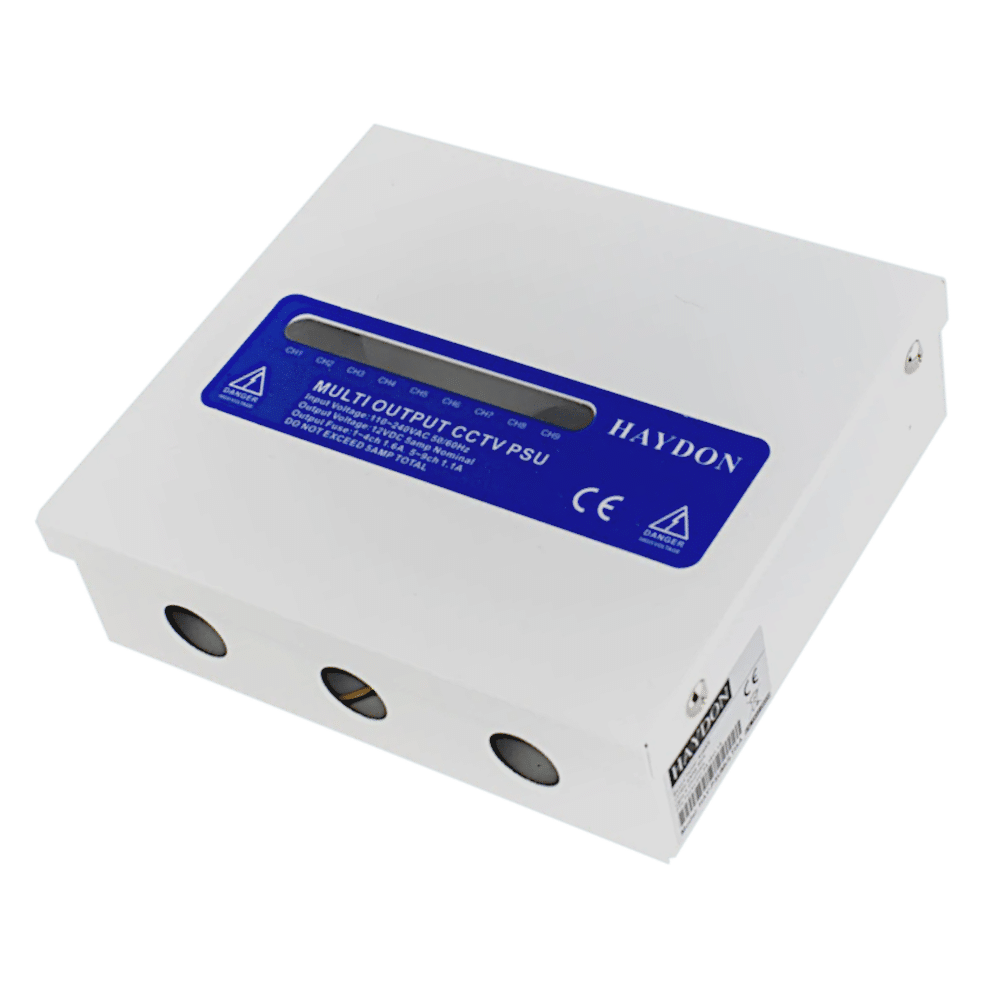

The HAY-PSUMULTI-5A is a robust 12V DC power supply unit designed to support up to nine CCTV cameras or related devices. It delivers a total output of 5A, with outputs 1 to 4 each rated at 1.6A and outputs 5 to 9 each rated at 1.1A, ensuring efficient power distribution across connected equipment. Each output is equipped with an LED indicator to display its status, facilitating easy monitoring and maintenance. Housed in a durable metal enclosure measuring 180mm x 165mm x 52 mm, the unit features individual auto-reset PTC fuses for each output, providing overcurrent protection and eliminating the need for manual fuse replacement. The power supply also includes surge protection to safeguard connected devices from voltage spikes. has an internal power on/off switch allows for convenient control during installation and servicing and is compliant with RoHS and CE standards.

Features:

Clear front panel slot to see if outputs are live

PTC resettable fuses

Up to 9 x 12VDC outputs

Surge protected

Individual LED output indicator

5 Amps total maximum output
