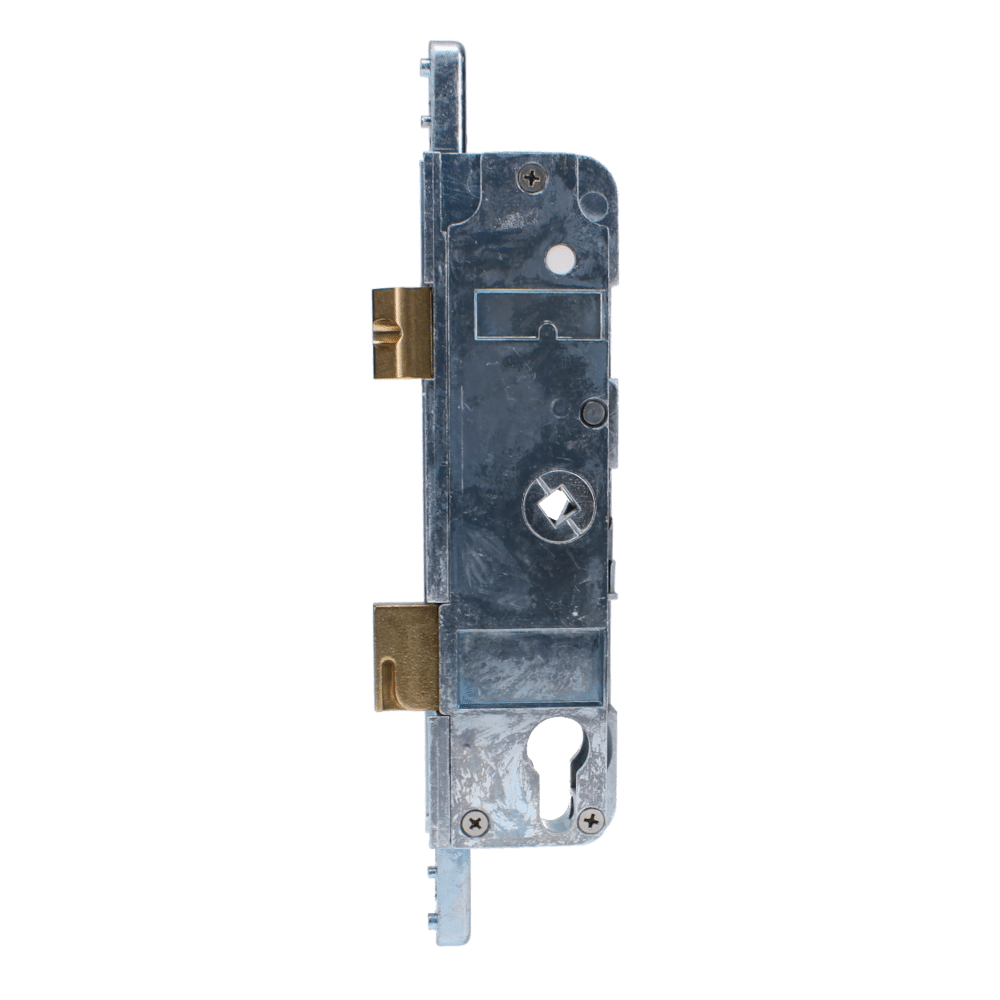

FULLEX Lever Operated Latch & Deadbolt Split Spindle Old Style – Centre Case

This FULLEX Lever Operated Latch & Deadbolt Split Spindle Old Style Centre Case has a 35mm backset with 68mm centres. It is a split spindle centre case with a 194mm case height and a 47mm case width.

The Fullex Old Style Centre Case features a latch and deadbolt configuration with a split spindle design, intended for use with earlier Fullex multipoint locking systems. It provides a direct gearbox-only replacement and is ideal for lever and pad or lever and lever applications on timber, composite, or UPVC doors where the locking strip remains intact.

Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.

Operation
Locking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.

Notes
Features the older latch style.

Features:

Euro profile lock case

Latch & deadbolt

Centre Gearbox Only

Old Style Version

Split Spindle
